Appendix: Optional Go60 Palm Rest

Introduction

An optional palm rest is available for Go60 for further comfort, when you are not on the move.

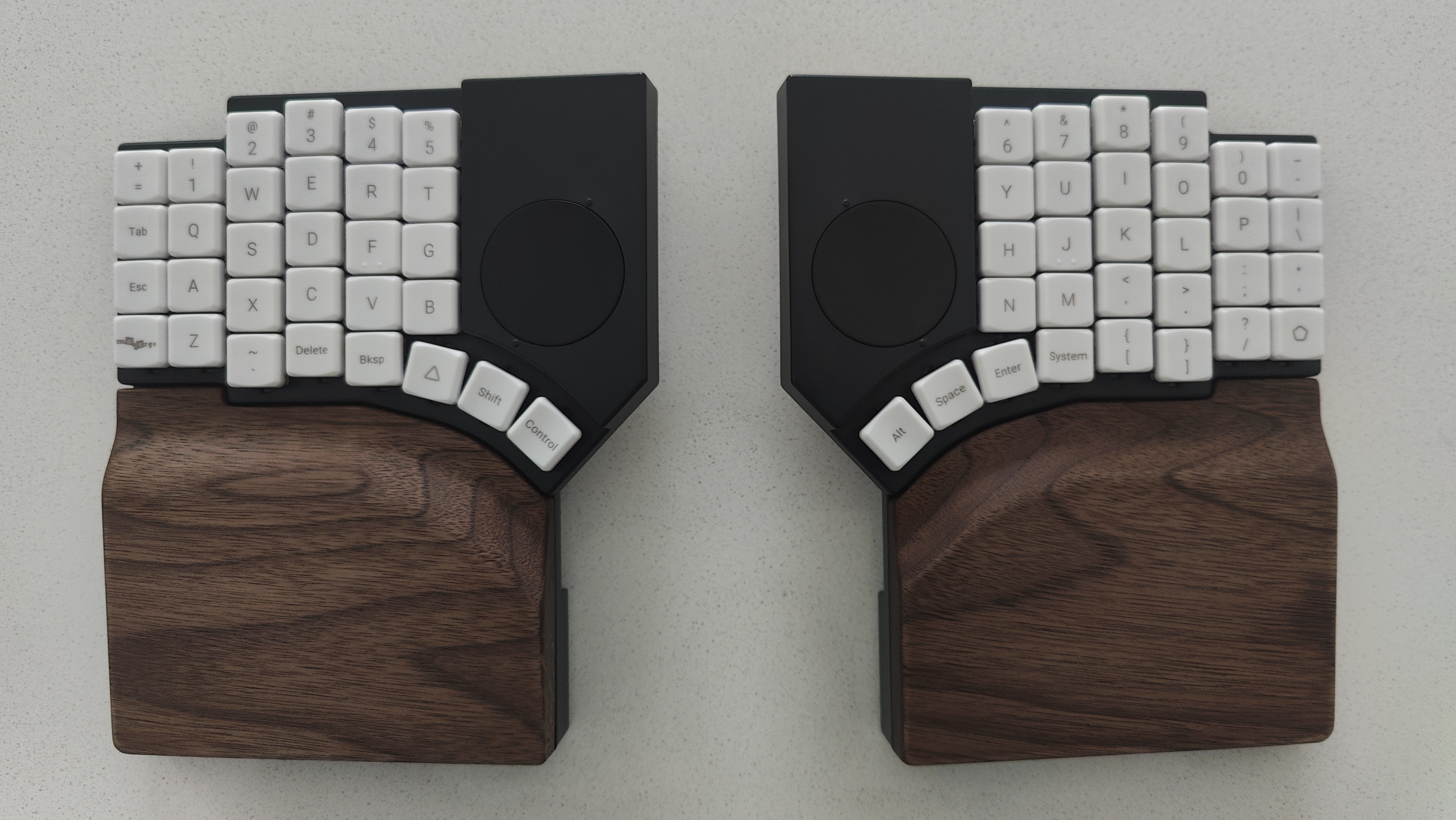

Go60 with optional palm rest

The palm rest has the following features:

• Magnetic attachment to Go60 for quick attachment and detachment
• Beautiful and comfortable natural walnut rest
• Built-in default tenting angle of 6 degrees
• Further tenting using a modular tenting mechanism to allow for six further tenting angles
• Compatible with the optional Mounting Puck for custom mounting

What's in the box?

Inside the box are:

• Two Go60 palm rests (one for each half of Go60)
• Large felt bag for the palm rests
• Small felt bag for the tenting bars

Tenting components and accessories

• A set of components for height adjustable tenting bars
  • 2 × Tenting bar top
  • 2 × Aluminium tenting bar bottom
  • 4 × Tenting bar tall extension
  • 2 × Tenting bar short extension
• A set of extra M3 screws
  • 4 × M3 x 35mm DIN912
  • 4 × M3 x 30mm DIN912
  • 4 × M3 x 25mm DIN912
  • 4 × M3 x 20mm DIN912
  • 4 × M3 x 14mm DIN912
  • 4 × M3 x 8mm DIN912
• M2.5 Allen Key

Additional spares and accessories

• 4 × 20x8x1.5mm silicone feet (spares)
• 4 × 20x8x3mm silicone feet (spares)

A look at the palm rest components

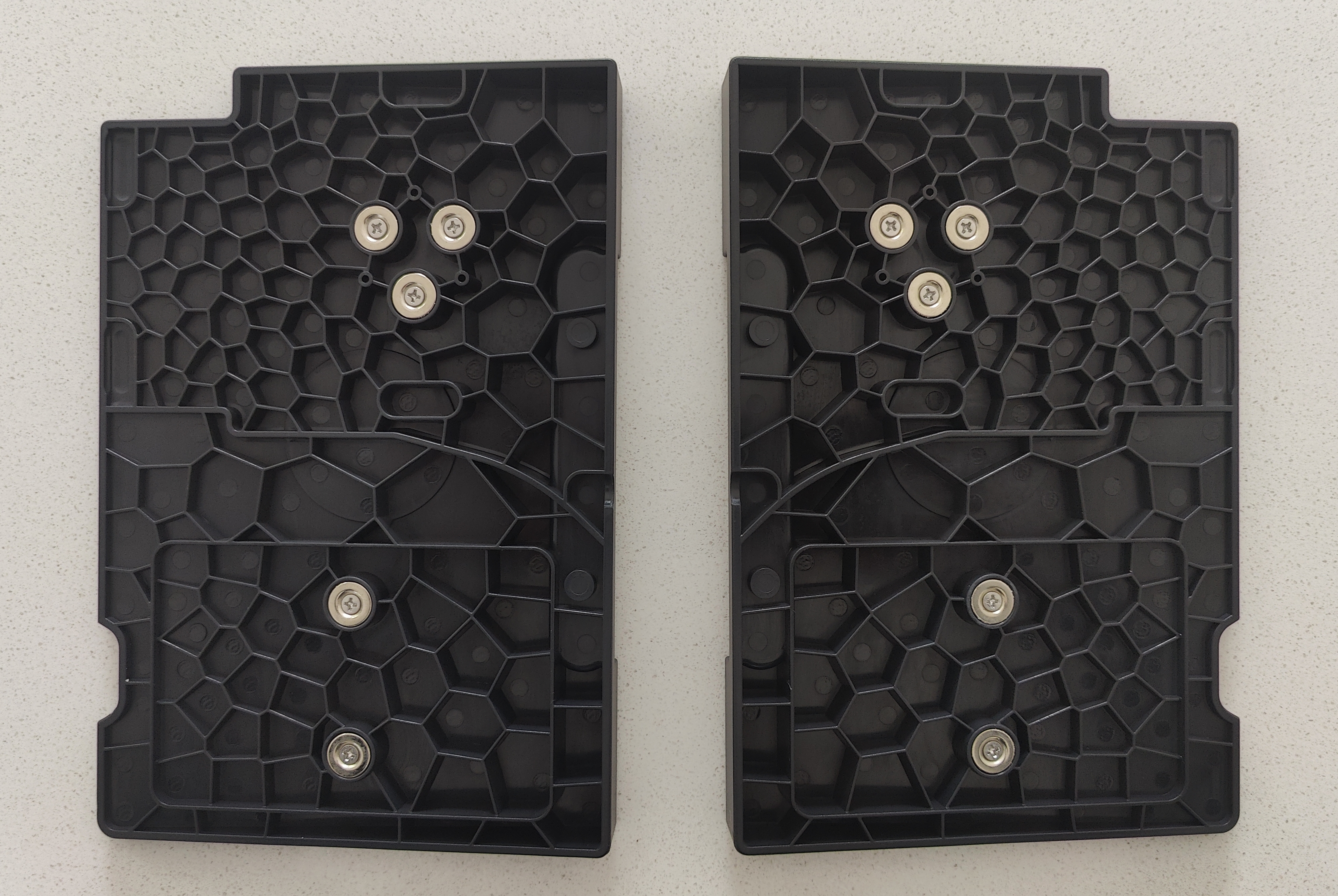

Go60 palm rest plastic component top-side

Go60 palm rest plastic component bottom-side

How to use the Go60 Palm Rest

Handling

Warning

Please do not hold the Go60 Palm Rest by the walnut palm rest. It is designed to be easily detachable.

Docking and Undocking Go60

Each side of Go60 Palm Rest has 3 strong magnets for docking with the Go60 half. There are 3 alignment pins on each side.

To undock the Go60 from the palm rest, pull the Go60 away from the palm rest while holding down the palm rest.

Tenting for Go60 Palm Rest

Example tented setup with palm rest

Info

The Go60 Palm Rest comes with its own tenting bar. They are hidden in a compartment in the Go60 palm rest box. Please lift the lid inside the box.

Tip

For the best experience when using the palm rest with the tenting bars, when you want to repositon the palm rest, please lift the palm rest gently with both hands. This helps keep the magnets secure and ensures smooth, stable movement.

How to adjust the tenting angle

The tenting bars can be adjusted to 6 different heights. Included with Go60 Palm Rest is a set of tenting components, screws and an allen key.

Tenting angle (degrees)	Components needed	DIN912 screw length (mm)
6.0	None	N/A
8.6	Tenting bar top Tenting bar bottom	8
11.4	Tenting bar top 1 × Short extension Tenting bar bottom	14
14.0	Tenting bar top 1 × Tall extension Tenting bar bottom	20
16.6	Tenting bar top 1 × Tall extension 1 × Short extension Tenting bar bottom	25
19.1	Tenting bar top 2 × Tall extension Tenting bar bottom	30
21.5	Tenting bar top 2 × Tall extension 1 × Short extension Tenting bar bottom	35

To assemble a tenting bar:

• Use the Allen key to remove both M3 screws from each tenting bar.
• Adjust the height by removing or adding the plastic extensions. Re-assemble the tenting bar.
• Select M3 screws of appropriate length.
• Insert M3 screws and tighten with Allen key.

Installing the tenting bars

Simply align the two raised alignment pins on each tenting bar with the matching two holes on the tenting bar comparment of the Go60 Palm Rest.

Go60 Palm Rest Tenting bar Installed

Warning

Please do not hold the Go60 Palm Rest by the attached tenting bar. The tenting bar is designed to be easily detachable.

Travelling with Go60 Palm Rests

To pack the Go60 Palm Rests for travelling:

1. Clip the tenting bars together. Put the tenting bars into the small felt bag
2. Stack the two half palm rest, bottom to bottom, with one half rotated 180 degree. Put them into the big felt bag

Warning

It is easy to mark the surface of the walnut palm rests. To prevent the aluminium tenting bar from marking the walnut components, please do not put small felt bag inside the big felt bag.

Care procedure for the natural walnut palm rest

The walnut palm rest component has been oiled at the factory. Like all oiled natural wood products, regular care and maintenance is required to maintain the protective finish, prevent drying, and keep it looking good while staying comfortable to the touch.

Regular Cleaning

• Occasional light clean: Use a slightly damp (not wet) cloth, then immediately wipe dry. Avoid harsh cleaners, alcohol, or detergents as they strip oils.

Re-waxing

• Frequency: Every 1 week to 3 months, depending on use, climate, and how dry the wood feels. If the surface looks dull, dry, or feels rough, it’s time.
• Process:

1. Wipe the palm rest clean and let it dry completely
2. Apply a thin layer of wood conditioning oil or wood conditioning wax blend
3. Rub in with a lint-free cloth, following the wood grain
4. Let the oil/wax soak for 15 to 30 minutes
5. Wipe off excess thoroughly to avoid stickiness
6. Allow to cure/dry for several hours (overnight is best)

Precautions

• Avoid standing water, spills, or soaking
• Don’t leave it in direct sun or near a heat source as wood can warp or crack
• If you ever sand lightly to refresh the surface, always re-oil afterward
• If your palms are sweaty, there is a high risk of sweat damage on the walnut palm rests. Please make sure that the walnut palm rests are always well oiled. Please also consider stripping the oil finish and varnishing the walnut palm rests if you have sweaty palms.

Warning

The walnut palm rests are not designed for sweaty palms. We choose an oil/wax treatment as it provides a nicer and more comfortable finish for most users.

However sweat damage can occur if the walnut palm rests are not sufficiently oiled/waxed or re-varnished. Sweat damage is not covered by the warranty.
