Introduction

Goals and key features of Go60

Go60 is designed first and foremost to be the best travel ergonomic keyboard we can make. The focus is a balance of travel-friendliness and ergonomics.

Go60 with palm rest

Go60 with optional palm rest

To this end, Go60 has the following features:

  • Optimized physical key layout with aggressive pinky stagger: instead of uniform choc spacing or MX spacing, we decided on a hybrid spacing to maximize comfort and reachability
  • Integrated dual 40mm touchpads: to eliminate the need to take a separate mouse/trackball on the road and to improve the ergonomics by minimizing hand movements
  • Tenting: optional 6-step travel-friendly tenting solution
  • Thin: reduce the need for palm rests and make traveling easier
  • Bluetooth LE wireless: to eliminate the need for wires and to simplify setup while on the road
  • Fully-wired option: connectivity with USB to the host computer and with a TRRS cable between the two halves to provide an essential backup solution when the environment is BLE hostile (such as some conference venues) or when the battery is flat. A special firmware option can disable BLE entirely, if the Go60 is in an environment where wireless communication such as Bluetooth LE is prohibited
  • Short travel and silent key switches: MoErgo's exclusive silent key switches (with the exception of the white clicky switch) are cushioned and have short-travel for typing comfort, and designed to allow you to work where noise is not tolerated
  • Key switch hotswapping: allows the user to change and mix-and-match different types of keyswitches without soldering
  • POM keycaps: for incredible typefeel
  • Compact travel case: the smallest off-the-shelf travel solution for a split ergonomic keyboard
  • An optional Palm Rest with natural walnut palm rest and integrated tenting
  • An optional Mounting Puck for custom mounting and high-angle mounting

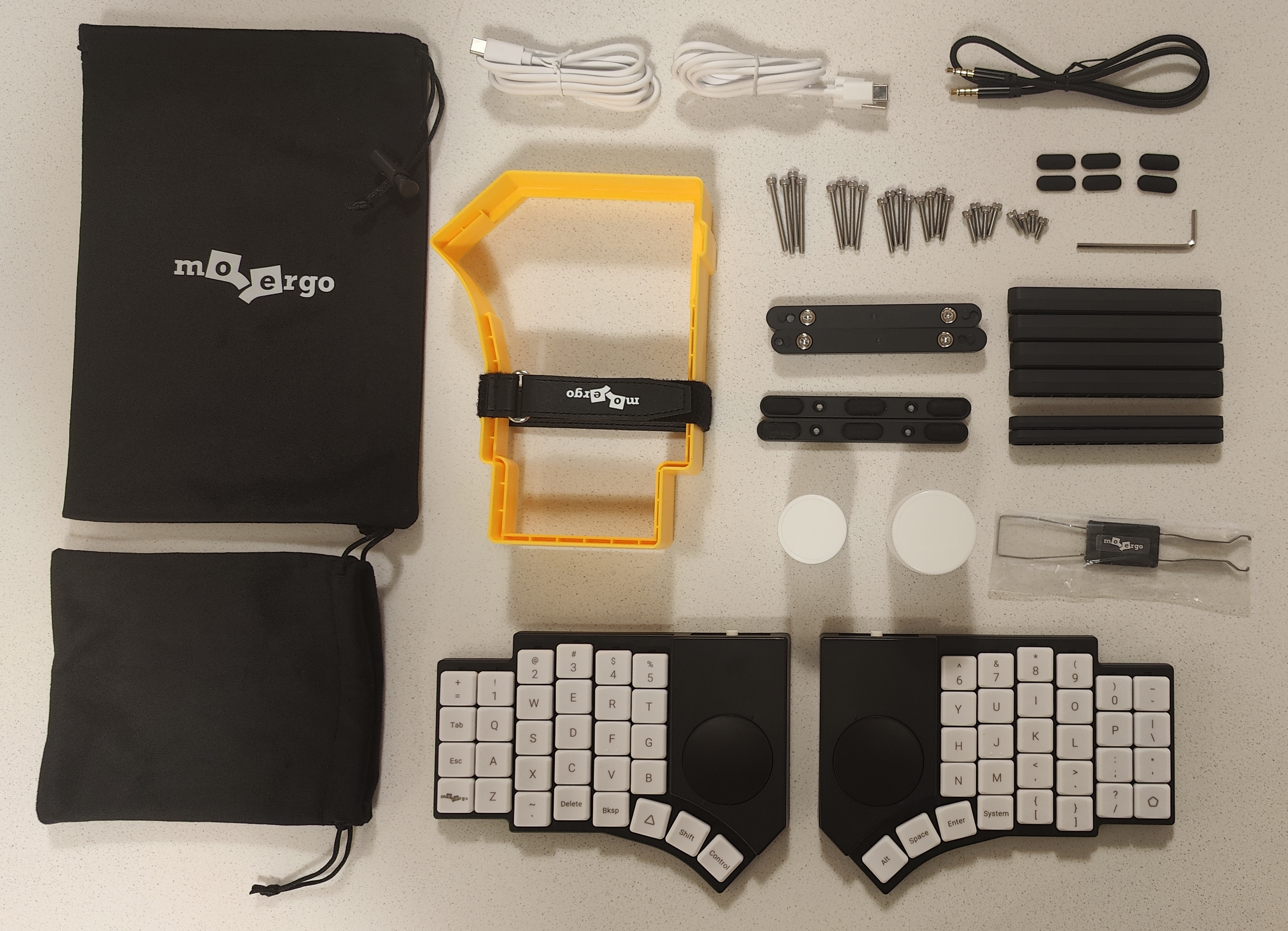

What’s in the box?

What's in the box

Inside the box are:

  • Go60 keyboard (a pair of two halves)
  • Hard Case to store the Go60 keyboard
  • Large felt bag for the hard case
  • Small felt bag for the tenting bars and cables
  • USB-A to USB-C, USB 2.0, 1m cable
  • USB-C to USB-C, USB 2.0, 1m cable
  • 50cm TRRS cable to optionally connect the two halves

Keycaps and keycap puller

The following keycaps and accessories are included:

  • A combined keycap and keyswitch puller
  • 18 × Extra legended MCC POM keycaps
  • 2 × MCC non-homing F and J POM keycaps
  • 2 × MCC blank POM keycaps
  • 4 × MCC Homing POM blank keycaps
  • 4 × 1U MBK Convex POM blank keycaps (optionally for thumb cluster T1 and T2)
  • 2 × 1.5U MBK Convex POM blank keycaps (optionally for thumb cluster T3)

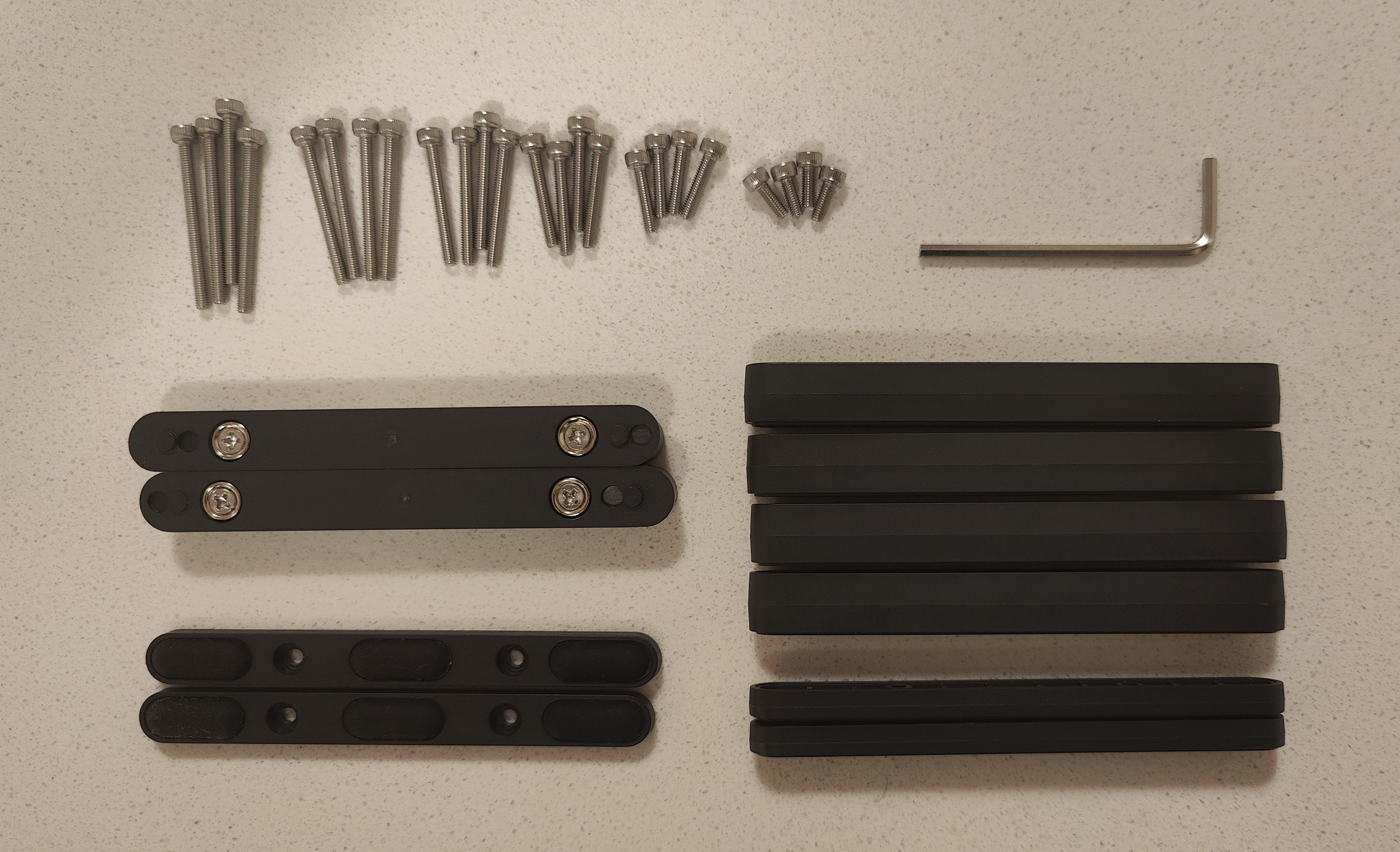

Tenting components and accessories

Tenting components and accessories

Go60 is designed to be highly customizable to fit your exact preferences. The following accessories are included to let you adjust the tenting angle:

  • A set of components for height adjustable tenting bars

    • 2 × Tenting bar top
    • 2 × Tenting bar bottom
    • 4 × Tenting bar tall extension
    • 2 × Tenting bar short extension

  • A set of M3 screws for use with tenting bars

    • 4 × M3 x 35mm DIN912
    • 4 × M3 x 30mm DIN912
    • 4 × M3 x 25mm DIN912
    • 4 × M3 x 20mm DIN912
    • 4 × M3 x 14mm DIN912
    • 4 × M3 x 8mm DIN912
  • M2.5 Allen Key

Additional spares

  • 4 × 20x8x1.5mm silicone feet (spares)
  • 2 × 20x8x3mm silicone feet (spares)
  • 4 × key switches (spares)

A look at Go60

Go60 is a split keyboard, consisting of a left half and a right half.

The left half is called the Central in ZMK vocabulary and acts as the “brain” of Go60. When connected to a host like a PC or a phone the connection is always made with the left half. The right half is the Peripheral in ZMK vocabulary.

When connecting Go60 to a host with a USB cable, the USB cable must be plugged into the left half. When Go60 is connected to the host via Bluetooth Low Energy (BT Low Energy or BLE), the left half is the half that is talking to the host wirelessly. To select which host Go60 connects to, whether through USB or BLE, please see Connecting Go60 to host devices.

The left half communicates with the right half either through a Bluetooth Low Energy connection, or through a TRRS cable. Go60 will automatically switch the communication mode of left half-right half communication, depending on the presence of the TRRS cable. Please see the section Wired split and wireless split.

Back view of Go60

Back view of Go60
  • Power button: For switching off power. Please note that it is still possible to charge the battery even when powered off.
  • USB port: For connecting to the host (left half only), updating firmware, and battery charging.
  • TRRS port: For connecting to the other half.
  • Red indicator LED: For indicating bootloader status

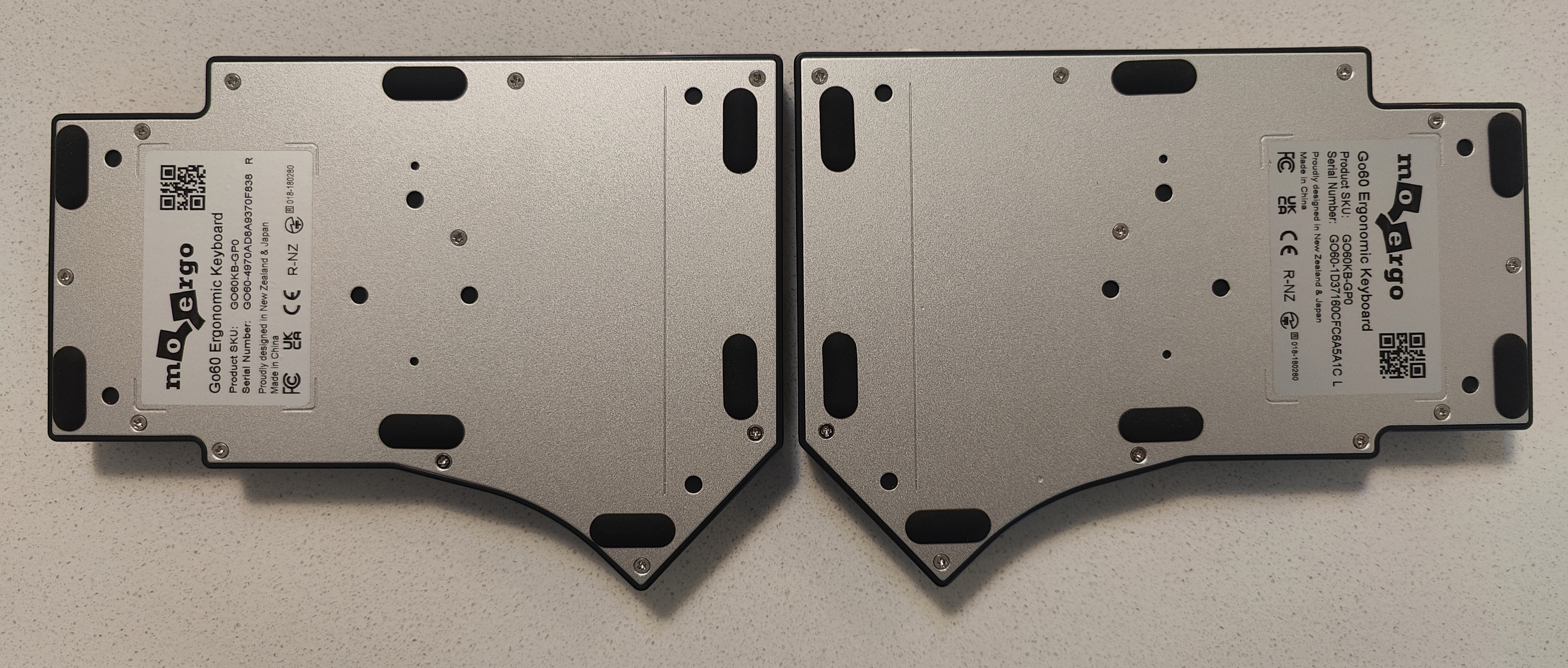

Bottom view of Go60

Bottom view of Go60
